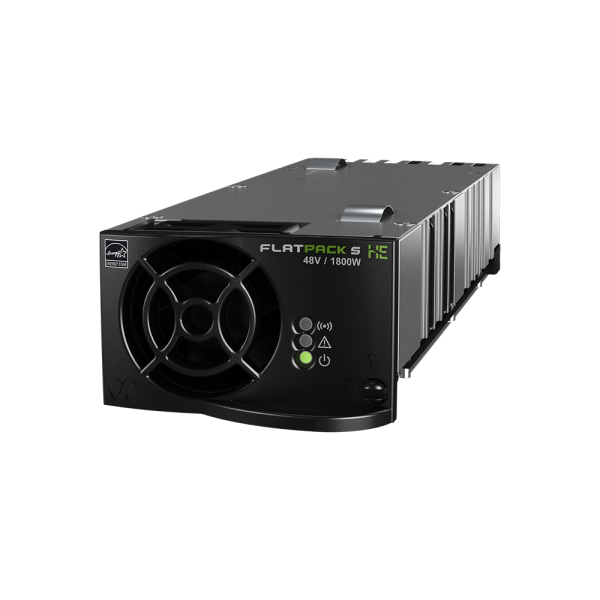

Flatpack S 48V/1800W HE
The Flatpack S rectifiers incorporate telecom specifications, high efficiency, OR-ing protection on output and high power in a small, 217 mm deep box.
Flatpack S 48V/1800W HE
The Flatpack S rectifiers incorporate telecom specifications, high efficiency, OR-ing protection on output and high power in a small, 217 mm deep box.
closeOverview
Compact HE rectifiers for small to medium telecom applications

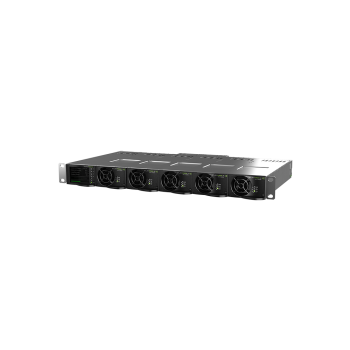

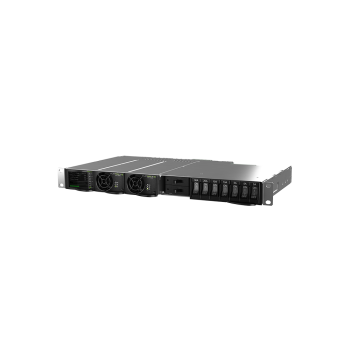

Used in the 1U high, 2 or 3 rectifier positions power rack with Smartpack S controller and battery and load distributions, the Flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6 liters, and low heat dissipation.
Key features
- Small
- Short
- Power density - 47 W/inch3
- High efficiency
- OR-ing protection on output
- Hot pluggable
- Voltage and power keying
Technical Data
Input
Voltage AC (operating range)
85 - 305 VAC
Voltage DC (operating range)
85 - 250 VDC
DC Output
Max Power
1800 W
Voltage (adjustable range)
43,5 – 57,6VDC
Current (maximum)
37,5A
Max voltage
57,6V
Other
Cooling
Single fan
Efficiency
95,8 %
Operating temperature
-40 - 85 °C
Dimensions
Dimensions WxHxD (mm)
72 x 41,5 x 217 mm
Dimensions WxHxD (inch)
2,83 x 1,63 x 8,54 "
Design Standards
Ingress Protection (IP)
20
Downloads (1)
-
Datasheet Flatpack S 48V Rectifiers
- Version 2
- 300 kB
- Document number: PEDM0000524792
Compact HE rectifiers for small to medium telecom applications
Used in the 1U high, 2 or 3 rectifier positions power rack with Smartpack S controller and battery and load distributions, the Flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6 liters, and low heat dissipation.
Key features
- Small
- Short
- Power density - 47 W/inch3
- High efficiency
- OR-ing protection on output
- Hot pluggable
- Voltage and power keying
